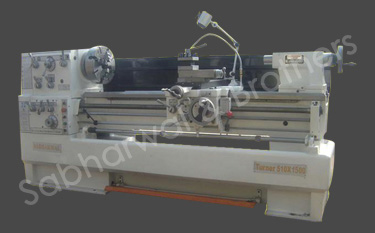

Model SB 510 x 1500
| PARTICULARS | CAPACITY |
| Swing Over Bed | 510 mm (20") |
| Swing Over Cross Slide | 305 mm (12") |
| Swing in Gap | 735 x 170 mm (29"x6- 3/8") |
| Height of Center | 255 mm (10") |
| Distance Between Center | 1500 mm (60") |
| Width of Bed | 355 mm (13- 3/4") |
| HEAD STOCK | |
| Spindle Bore | 80 mm (3 - 1/8") |
| Spindle Nose | D1- 8 |
| Taper of Spindle Bore | M.T. No. 7 |
| Spindle Speeds Range | 12 Changes (25 - 1600 RPM) |
| THREAD & FEEDS | |
| Lead screw Diameter | 40mmx4T.P.I. or Pitch 6m |
| Thread Imerial Pitches | 2- 112 T.P.I. (60 nos) |
| Threads Metric Pitches | 0.2- 14mm (47 nos) |
| Diameterical Pitches | 4-112 D.P. (50 nos) |
| Longitudinal Feeds Range | 0.059- 1.646mm/ 0.0022" - 0.0612" / Rev ( 35 nos) |
| Cross Feeds Range | 0.020-0.573mm / 0.00048" - 0.01354" (35 nos) |
| Module Pitches Range | 0.1-7 M.P. (39 nos) |
| TAILSTOCK | |
| Total Travel or Tailstock Quill | 180 mm (7") |
| Tailstock Quill Meter | 75 mm (3") |
| Taper of Tailstick Sleeve | M.T. No. 5 |
| Cross Adjustment | 13 mm (1/2") |
| MOTOR | |
| Spindle Drive Motor | 7.5 kw (10HP) 3 PH |
| Coolant Pump | 0.1 kw (1/8HP) 3 PH |
| WEIGHT & MEASURES | |
| Machine Space Required (L x W x H) mm |
284 x 115 x 143 |
| Net Weight / Gross Weight | 2335 kg / 2700 kg |
Compare Products
Contact Info
C-72, Mayapuri Industrial Area,
Phase-II, New Delhi - 110064, India.
Tel: +91-11-28116756/28116318
Mob: +91-9810419107
Fax: +91-11-41847797
E-mail : info@sabharwallathe.com
Read more...
STANDARD ACCESSORIES
- Three Jaw Chuck and adopter.
- Four Jaw Chuck and Adopter
- Face Plates
- Steady Rest
- Follow Rest
- Oil Gun
- Thread Chasing Dial
- 4 Speed Auto Kickout Carriage Stop
- One Set of Wrenches
- Square Tool Post and Key
- Coolant Equipment
- Foot Brake
- Machine Lamp
- Splash Guard
- Chuck Guard
- Operation Manual
- Micro Carriage Stop
- Work Light
