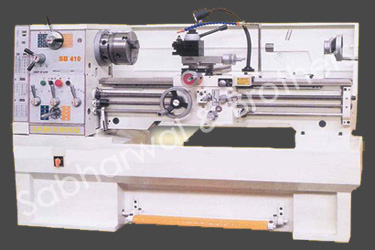

Model SB 400 x 1000
| PARTICULARS | CAPACITY |
| Swing Over Bed | 410 mm (16') |
| Swing Over Cross Slide | 255 mm (10") |
| Swing in Gap | 580 mm (23") |
| Height of Center | 200 mm (8") |
| Distance Between Center | 1000 mm (40") |
| Width of Bed | 250 mm (10') |
| HEAD STOCK | |
| Spindle Bore | 52 mm (2") |
| Spindle Nose | D1- 6 |
| Taper of Spindle Bore | No.6 MORCE |
| Spindle Speeds Range | 16 Changes 45- 1800r/ min |
| THREAD & FEEDS | |
| Max. Travel of Compound rest | S |
| Max. Travel of Cross Slide | 210 mm (8-1/4") |
| Lead screw Pitch | 4 T.P.I. |
| Max. Section of Tool | 20 x 20 mm (13/16") |
| Longitudinal Feeds Range | 0.05- 1.7 mm/ rev (0.002"-0.067"/rev) |
| Cross - Feeds Range | 0.025- 0.85 mm (0.001"- 0.0335"/rev) |
| Metric Threads Range | 39 kinds 0.2 - 14 mm |
| Inch. Treads Range | 45 kinds 2 - 72 T.P.I. |
| Diametrical Pitches Range | 21 kinds 8 - 44 D.P. |
| Module Pitches Range | 18 kinds 0.3 - 3.5 M.P. |
| TAILSTOCK | |
| Dia. of Tailstock Sleeve | 50 mm (2") |
| Travel of Tailstock Sleeve | 120 mm (4-3/4") |
| Morse Taper of Tailstick Sleeve | No.4 Morse |
| Cross Adjustment | 13 mm (1/2") |
| MOTOR | |
| Spindle Drive Motor | 2.8/3.3kw (3.8/4.5HP)3PH |
| Coolant Pump | 0.1KW(1/8HP),3PH |
| WEIGHT & MEASURES | |
| Machine Space Required (L x W x H) mm |
1940 x 850 x 1320 |
| Net Weight / Gross Weight | 1550/ 1800 |
Compare Products
Contact Info
C-72, Mayapuri Industrial Area,
Phase-II, New Delhi - 110064, India.
Tel: +91-11-28116756/28116318
Mob: +91-9810419107
Fax: +91-11-41847797
E-mail : info@sabharwallathe.com
Read more...
STANDARD ACCESSORIES
- Three Jaw Chuck and adopter.
- Four Jaw Chuck and Adopter
- Face Plates
- Steady Rest
- Follow Rest
- Oil Gun
- Thread Chasing Dial
- 4 Speed Auto Kickout Carriage Stop
- One Set of Wrenches
- Square Tool Post and Key
- Coolant Equipment
- Foot Brake
- Machine Lamp
- Splash Guard
- Chuck Guard
- Operation Manual
- Micro Carriage Stop
- Work Light
